Water Quench Heat Treating Services
Water Quench Heat Treating Services
Western Pennsylvania Facility

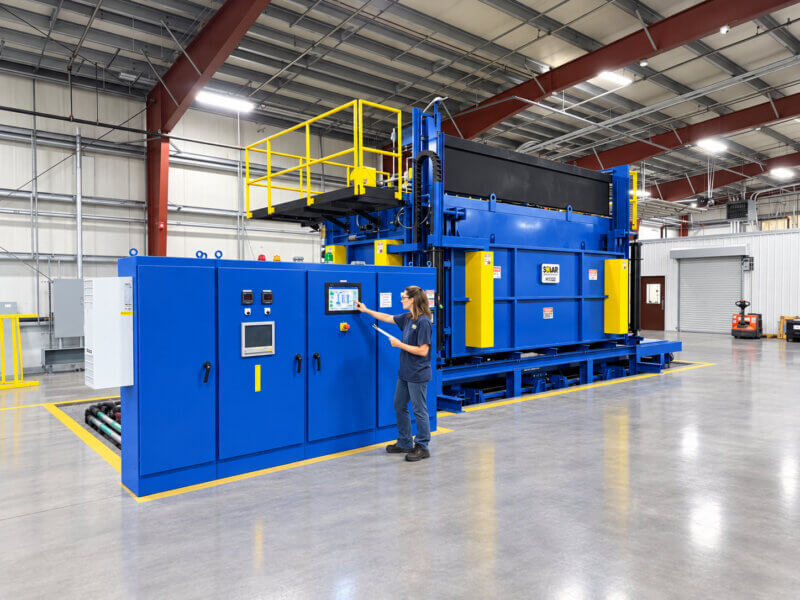

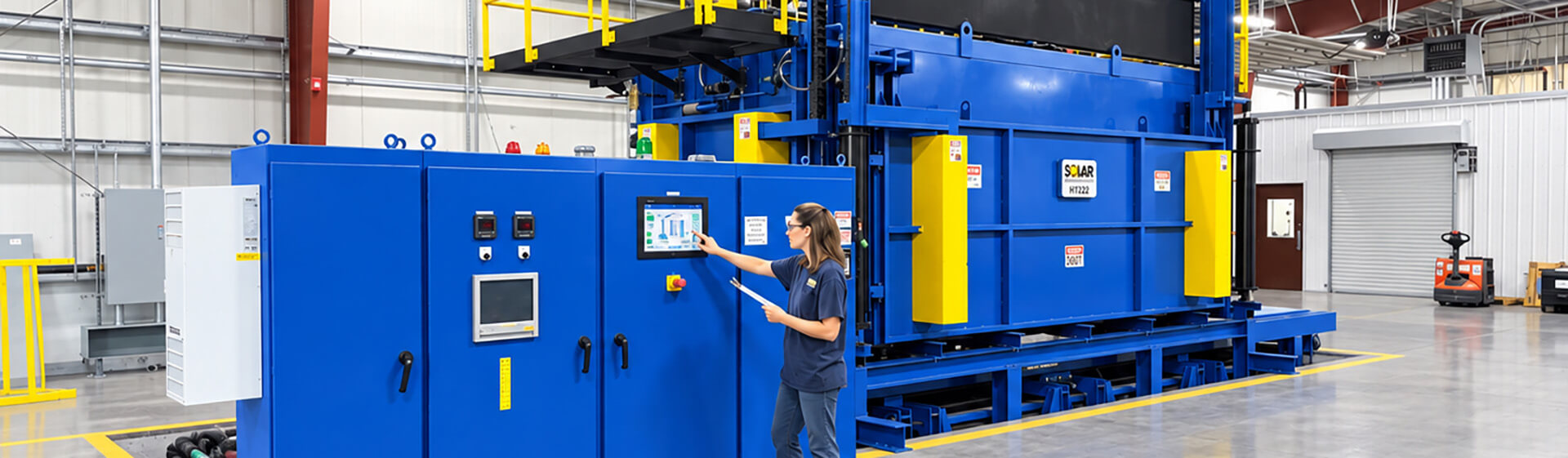

Water quench heat treating primarily for solution treating (ST) titanium bars, titanium forgings, and other large titanium components. The furnace features a 14-foot-long × 54-inch-wide × 48-inch-high workload envelope.
Following the heat treatment cycle, parts are rapidly transferred into the 11,000-gallon recirculating, agitated water quench tank within a five- to seven-second quench delay. This rapid transfer and uniform quenching process provide the fast, consistent cooling required to achieve the metallurgical properties demanded by aerospace, defense, and other high-performance industrial applications.
With its exceptional heating uniformity and advanced quenching capabilities, this system is one of the fastest-cooling furnaces in the Solar Atmospheres fleet of furnaces, and one of only a few of its kind in the United States.
Processes
- Hardening
- Annealing
- Stress Relieving
Unique Capabilities
- AMS2750 NADCAP Compliant
- 7500 pound maximum load capacity
- 1950°F maximum operating temperature
- 54″W x 48″H x 168” L hot zone
- 11,000 gallon water tank with full cooling
- HMI and automated transfer mechanism ensure consistent and repeatable results
- Provides a full compliment of processing all materials
San Diego Facility
Water quench heat treating primarily for treating (ST) aluminum bars, aluminum forgings, and other aluminum components. The furnace features a 72″ long × 72″ wide × 72″ high workload envelope.
Following the heat treatment cycle, parts are rapidly transferred into the water quench tank.
Processes
- Hardening
- Annealing
- Stress Relieving
Unique Capabilities
- 7500 pound maximum load capacity
- 1100°F maximum operating temperature
- 72″W x 72″H x 72” L hot zone
- 11,000 gallon water tank with full cooling
Capability to Support these Types of Requests
- High Emissivity Surface Treatment of Haynes 230
- High Emissivity Surface Treatment of Zirconium
- Pre-oxidize surface treatment
- SPX-00040579
- Nickel Alloy Oxide Coating Heat Treat
- Increasing Emissivity of Haynes 230
- VEHICLE ENGINEERING MP Process Specification
Materials Processed
- Titanium Alloys
- 1045, 1050, 1060, 1075, and 1095 Steels
- 300 series steels
- W1, W2 Steels
- 2024, 2014 , 6061, 6063 and 7075 Aluminum Alloys
- Coper and Beryllium (C17200) Alloys
- HY-80
- And many other grades!
Industries
- Aerospace / Space
- Defense/Military
- Power Generation
- Industrial / Commercial
- Automotive
